起源の場所:
中国
ブランド名:
KELONG
モデル番号:
KL-128
送信
KL128 - ピストンシール 高耐磨性 低摩擦性 滑らか性 安定性 安定性

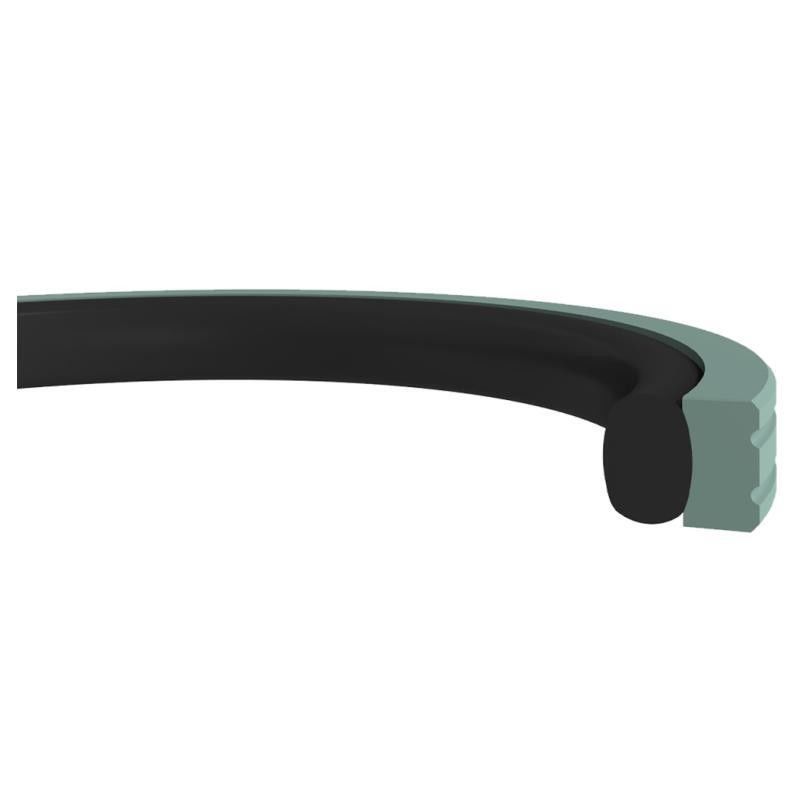

KL128は,PTFEリングとエネルギー化エラストーマーOリングからなる二重作用回転シール要素である.それはピストンタイプ圧縮回転シールアプリケーションでPTFE材料の優れた特性で高い性能を提供します.
属性
• 摩擦が少なく,滑りやすい.
• 耐磨性が高い
• 広い温度範囲
• 熱伝導性が良い
• 耐磨性も低く,外押し抵抗も高い
• 広範囲にわたる流体用途
• 冷たい流れに耐える

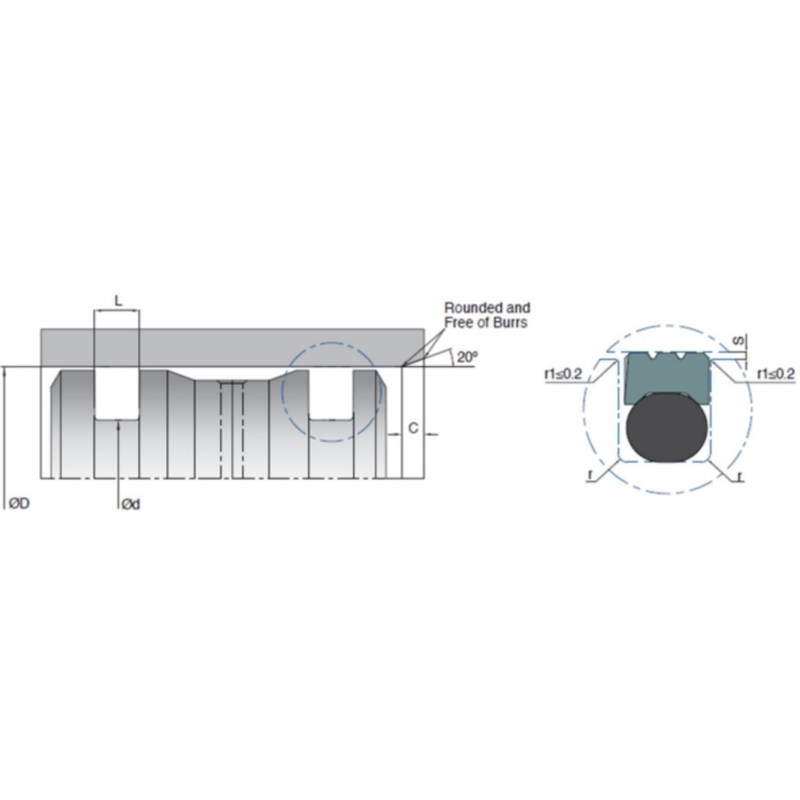

| D (H8) | d (h9) | L (+0.2/-0) | r | C について | オーリング | 材料 | |
| KL128-015 | 15 | 10.1 | 2.2 | 0.4 | 3 | 9.75×178 | PTFE NBR |
| KL128-016 | 16 | 11.1 | 2.2 | 0.4 | 3 | 10.82×178 | PTFE NBR |
| KL128-020 | 20 | 15.1 | 2.2 | 0.4 | 3 | 15.20×178 | PTFE NBR |
| KL128-025 | 25 | 20.1 | 2.2 | 0.4 | 3 | 19.00×178 | PTFE NBR |
| KL128-028 | 28 | 20.5 | 3.2 | 0.6 | 4.5 | 20.29×262 | PTFE NBR |
| KL128-030 | 30 | 25.1 | 2.2 | 0.4 | 3 | 25.12×178 | PTFE NBR |
| KL128-032 | 32 | 27.1 | 2.2 | 0.4 | 3 | 26.70×178 | PTFE NBR |
| KL128-032/1 | 32 | 24.5 | 3.2 | 0.6 | 4.5 | 23.81×262 | PTFE NBR |
| KL128-035 | 35 | 30.1 | 2.2 | 0.4 | 3 | 29.87×178 | PTFE NBR |
| KL128-040 | 40 | 32.5 | 3.2 | 0.6 | 4.5 | 31.42×262 | PTFE NBR |
| KL128-040/1 | 40 | 29 | 4.2 | 0.8 | 5.5 | 28.17×353 | PTFE NBR |
| KL128-045 | 45 | 37.5 | 3.2 | 0.6 | 4.5 | 36.17×262 | PTFE NBR |
| KL128-050 | 50 | 42.5 | 3.2 | 0.6 | 4.5 | 42.52×262 | PTFE NBR |
| KL128-052 | 52 | 44.5 | 3.2 | 0.6 | 4.5 | 44.12×262 | PTFE NBR |
| KL128-055 | 55 | 47.5 | 3.2 | 0.6 | 4.5 | 47.29×262 | PTFE NBR |
| KL128-060 | 60 | 52.5 | 3.2 | 0.6 | 4.5 | 52.07×262 | PTFE NBR |
| KL128-063 | 63 | 55.5 | 3.2 | 0.6 | 4.5 | 53.65×262 | PTFE NBR |
| KL128-065 | 65 | 57.5 | 3.2 | 0.6 | 4.5 | 56.82×262 | PTFE NBR |
| KL128-070 | 70 | 62.5 | 3.2 | 0.6 | 4.5 | 61.60×262 | PTFE NBR |
| KL128-075 | 75 | 67.5 | 3.2 | 0.6 | 4.5 | 66.35×262 | PTFE NBR |
| KL128-080 | 80 | 69 | 4.2 | 0.8 | 5.5 | 68.26×353 | PTFE NBR |
| KL128-080/1 | 80 | 64.5 | 6.3 | 1.2 | 6 | 62.87×533 | PTFE NBR |
| KL128-085 | 85 | 74 | 4.2 | 0.8 | 5.5 | 73.03×353 | PTFE NBR |
| KL128-090 | 90 | 79 | 4.2 | 0.8 | 5.5 | 78.97×353 | PTFE NBR |
| KL128-095 | 95 | 84 | 4.2 | 0.8 | 5.5 | 82.14×353 | PTFE NBR |
| KL128-100 | 100 | 89 | 4.2 | 0.8 | 5.5 | 8850×3 だった53 | PTFE NBR |
| KL128〜105 | 105 | 94 | 4.2 | 0.8 | 5.5 | 91.67×353 | PTFE NBR |
| KL128-110 | 110 | 99 | 4.2 | 0.8 | 5.5 | 98.02×353 | PTFE NBR |
| KL128-115 | 115 | 104 | 4.2 | 0.8 | 5.5 | 101.20×353 | PTFE NBR |
| KL128-120 | 120 | 109 | 4.2 | 0.8 | 5.5 | 107.54×353 | PTFE NBR |
| KL128-125 | 125 | 114 | 4.2 | 0.8 | 5.5 | 113.90×353 | PTFE NBR |
| KL128-130 | 130 | 119 | 4.2 | 0.8 | 5.5 | 117.07×353 | PTFE NBR |
| KL128-135 | 135 | 119.5 | 6.3 | 1.2 | 6 | 117.48×533 | PTFE NBR |
| KL128-135/1 | 135 | 124 | 4.2 | 0.8 | 5.5 | 120.25×353 | PTFE NBR |
| KL128-140 | 140 | 124.5 | 6.3 | 1.2 | 6 | 123.80×533 | PTFE NBR |
| KL128-145 | 145 | 134 | 4.2 | 0.8 | 5.5 | 132.94×353 | PTFE NBR |
| KL128-150 | 150 | 134.5 | 6.3 | 1.2 | 6 | 133.35×533 | PTFE NBR |
| KL128〜155 | 155 | 144 | 4.2 | 0.8 | 5.5 | 142.47×353 | PTFE NBR |
| KL128-160 | 160 | 144.5 | 6.3 | 1.2 | 6 | 142.24×533 | PTFE NBR |
| KL128-170 | 170 | 154.5 | 6.3 | 1.2 | 6 | 151.77×533 | PTFE NBR |
| KL128-175 | 175 | 159.5 | 6.3 | 1.2 | 6 | 155.00×533 | PTFE NBR |
| KL128-180 | 180 | 164.5 | 6.3 | 1.2 | 6 | 161.30×533 | PTFE NBR |
| KL128-190 | 190 | 174.5 | 6.3 | 1.2 | 6 | 170.82×533 | PTFE NBR |
| KL128-200 | 200 | 184.5 | 6.3 | 1.2 | 6 | 183.52×533 | PTFE NBR |
| KL128-210 | 210 | 194.5 | 6.3 | 1.2 | 6 | 189.87×533 | PTFE NBR |
| KL128-220 | 220 | 204.5 | 6.3 | 1.2 | 6 | 202.57×533 | PTFE NBR |
| KL128-230 | 230 | 214.5 | 6.3 | 1.2 | 6 | 208.92×533 | PTFE NBR |
| KL128-240 | 240 | 224.5 | 6.3 | 1.2 | 6 | 221.62×533 | PTFE NBR |
| KL128-250 | 250 | 234.5 | 6.3 | 1.2 | 6 | 234.32×533 | PTFE NBR |
| KL128-260 | 260 | 244.5 | 6.3 | 1.2 | 6 | 247.02×533 | PTFE NBR |
| KL128-280 | 280 | 264.5 | 6.3 | 1.2 | 6 | 266.07×533 | PTFE NBR |
| KL128-300 | 300 | 284.5 | 6.3 | 1.2 | 6 | 278.77×533 | PTFE NBR |
