起源の場所:
中国
ブランド名:
KELONG
モデル番号:
KL-110
送信
KL127 - ROD SEAL 高耐磨性 低摩擦性 滑らか性 安定性 安定性 耐久性

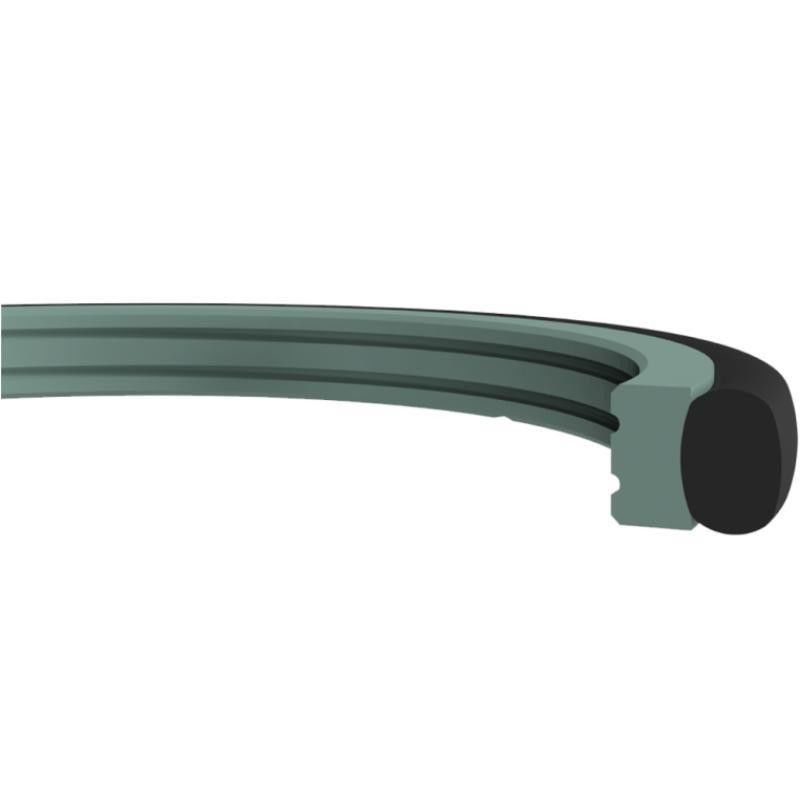

K702は,PTFEリングとエネルギー化エラストーマーOリングからなる,二重作用の回転シール要素である.棒タイプ圧縮回転シールアプリケーションで優れた特性で高い性能を提供します.

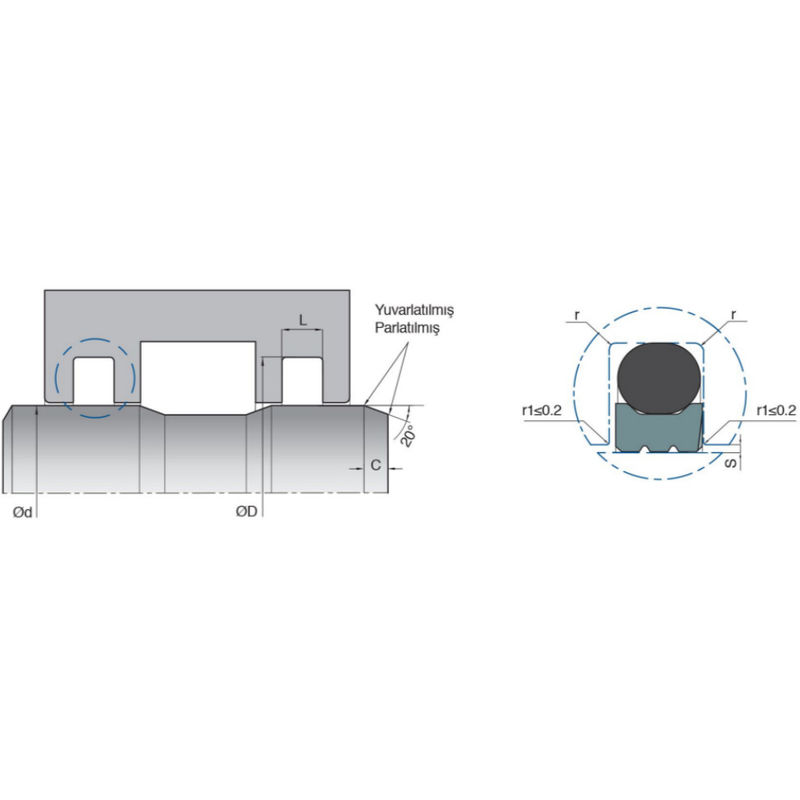

| d (f8) | D (H9) | L (+0.2/-0) | r | C について | オーリング | 材料 | |
| KL127-010 | 10 | 14.9 | 2.2 | 0.4 | 3 | 11.11×178 | PTFE NBR |
| KL127-012 | 12 | 16.9 | 2.2 | 0.4 | 3 | 12.42×178 | PTFE NBR |
| KL127-015 | 15 | 19.9 | 2.2 | 0.4 | 3 | 17.17×178 | PTFE NBR |
| KL127-016/1 | 16 | 20.9 | 2.2 | 0.4 | 3 | 17.17×178 | PTFE NBR |
| KL127-020 | 20 | 27.5 | 3.2 | 0.6 | 4.5 | 23.47×262 | PTFE NBR |
| KL127-020/1 | 20 | 24.9 | 2.2 | 0.4 | 3 | 21.95×178 | PTFE NBR |
| KL127-024 | 24 | 31.5 | 3.2 | 0.6 | 4.5 | 26.64×262 | PTFE NBR |
| KL127-025 | 25 | 32.5 | 3.2 | 0.6 | 4.5 | 28.25×262 | PTFE NBR |
| KL127-025/1 | 25.4 | 32.9 | 3.2 | 0.6 | 4.5 | 28.25×262 | PTFE NBR |
| KL127-028 | 28 | 35.5 | 3.2 | 0.6 | 4.5 | 31.42×262 | PTFE NBR |
| KL127-030 | 30 | 37.5 | 3.2 | 0.6 | 4.5 | 33.00x2 について62 | PTFE NBR |
| KL127-032 | 32 | 39.5 | 3.2 | 0.6 | 4.5 | 34.59×262 | PTFE NBR |
| KL127-035 | 35 | 42.5 | 3.2 | 0.6 | 4.5 | 37.77×262 | PTFE NBR |
| KL127-036 | 36 | 43.5 | 3.2 | 0.6 | 4.5 | 39.34×262 | PTFE NBR |
| KL127-038/1 | 38 | 49 | 4.2 | 0.8 | 5.5 | 41.28×353 | PTFE NBR |
| KL127-040 | 40 | 51 | 4.2 | 0.8 | 5.5 | 44.45×353 | PTFE NBR |
| KL127-040/1 | 40 | 55.5 | 6.3 | 1.2 | 6 | 47.00×533 | PTFE NBR |
| KL127-045 | 45 | 56 | 4.2 | 0.8 | 5.5 | 49.21×353 | PTFE NBR |
| KL127-050 | 50 | 61 | 4.2 | 0.8 | 5.5 | 53.57×353 | PTFE NBR |
| KL127-052 | 52 | 67.5 | 6.3 | 1.2 | 6 | 56.52×533 | PTFE NBR |
| KL127-055 | 55 | 66 | 4.2 | 0.8 | 5.5 | 58.74×353 | PTFE NBR |
| KL127-056 | 56 | 67 | 4.2 | 0.8 | 5.5 | 60.33×353 | PTFE NBR |
| KL127-060 | 60 | 71 | 4.2 | 0.8 | 5.5 | 6350×3 だった53 | PTFE NBR |
| KL127-060/1 | 60 | 75.5 | 6.3 | 1.2 | 6 | 66.04×533 | PTFE NBR |
| KL127-070 | 70 | 81 | 4.2 | 0.8 | 5.5 | 73.03×353 | PTFE NBR |
| KL127-075 | 75 | 86 | 4.2 | 0.8 | 5.5 | 78.97×353 | PTFE NBR |
| KL127-080 | 80 | 91 | 4.2 | 0.8 | 5.5 | 82.14×353 | PTFE NBR |
| KL127-080/1 | 80 | 95.5 | 6.3 | 1.2 | 6 | 85.09×533 | PTFE NBR |
| KL127-085 | 85 | 96 | 4.2 | 0.8 | 5.5 | 8850×3 だった53 | PTFE NBR |
| KL127-085/1 | 85 | 100.5 | 6.3 | 1.2 | 6 | 89.69×533 | PTFE NBR |
| KL127-090 | 90 | 101 | 4.2 | 0.8 | 5.5 | 94.84×353 | PTFE NBR |
| KL127-095 | 95 | 106 | 4.2 | 0.8 | 5.5 | 98.02×353 | PTFE NBR |
| KL127-100 | 100 | 111 | 4.2 | 0.8 | 5.5 | 104.37×353 | PTFE NBR |
| KL127-100/1 | 100 | 115.5 | 6.3 | 1.2 | 6 | 104.14×533 | PTFE NBR |
| KL127〜105 | 105 | 116 | 4.2 | 0.8 | 5.5 | 107.54×353 | PTFE NBR |
| KL127-110 | 110 | 121 | 4.2 | 0.8 | 5.5 | 113.90×353 | PTFE NBR |
| KL127-115 | 115 | 126 | 4.2 | 0.8 | 5.5 | 117.07×353 | PTFE NBR |
| KL127-120 | 120 | 131 | 4.2 | 0.8 | 5.5 | 123.40×353 | PTFE NBR |
| KL127-120/1 | 120 | 135.5 | 6.3 | 1.2 | 6 | 123.80×533 | PTFE NBR |
| KL127-125 | 125 | 136 | 4.2 | 0.8 | 5.5 | 126.60×353 | PTFE NBR |
| KL127-125/1 | 125 | 140.5 | 6.3 | 1.2 | 6 | 130.20×533 | PTFE NBR |
| KL127-130 | 130 | 141 | 4.2 | 0.8 | 5.5 | 132.94×353 | PTFE NBR |
