起源の場所:
中国
ブランド名:
Kelong
証明:
ISO9001 / IRIS
モデル番号:
KL43
送信

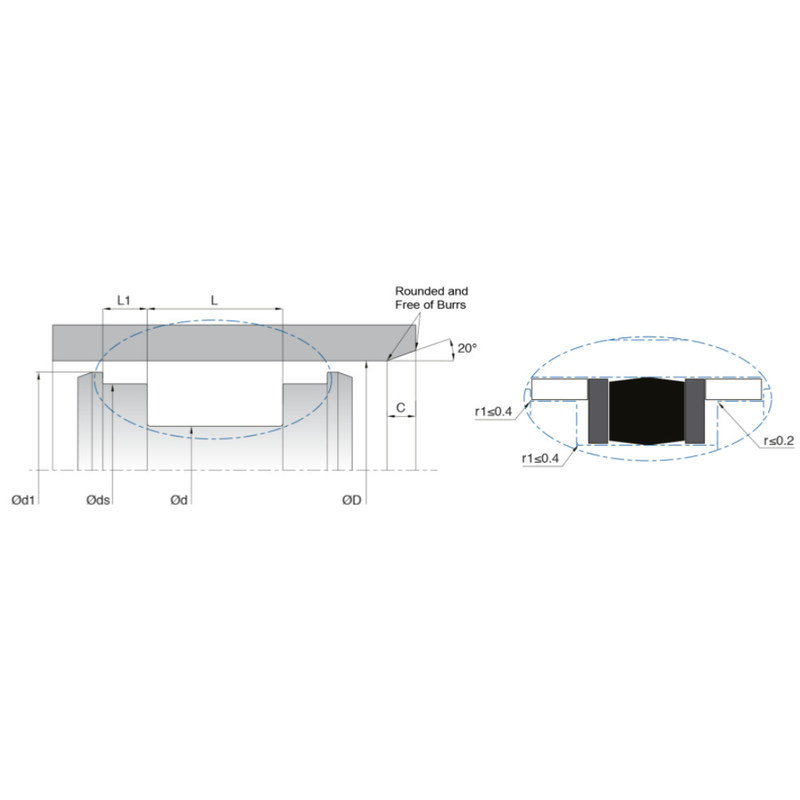

| D (H8) | d (h9) | L (+0.2/-0) | ds (h8) | d1 (±0.1) | L1 (+0.2/-0) | C について | 材料 | |
| KL43 028.57-019 について05 | 28.57 | 19.05 | 11.1 | 23.8 | 27.05 | 6.35 | 2.5 | NBR |
| KL43 031.75-02222 | 31.75 | 22.22 | 11.1 | 26.97 | 30.22 | 6.35 | 2.5 | NBR |
| KL43 034.92-0254 | 34.92 | 25.4 | 11.1 | 30.15 | 33.4 | 6.35 | 2.5 | NBR |
| KL43 038.1 - 02857 | 38.1 | 28.57 | 11.1 | 33.55 | 36.57 | 6.35 | 2.5 | NBR |
| KL43 038.1-028.57/1 | 38.1 | 28.57 | 11.1 | 33.32 | 36.57 | 9.52 | 2.5 | NBR |
| KL43 041.27-03175 | 41.27 | 31.75 | 11.1 | 36.47 | 39.75 | 9.52 | 2.5 | NBR |
| KL43 044.45-03492 | 44.45 | 34.92 | 11.1 | 39.65 | 42.92 | 9.52 | 2.5 | NBR |
| KL43 047.62-0381 | 47.62 | 38.1 | 11.1 | 42.82 | 46.1 | 9.52 | 2.5 | NBR |
| KL43 050.8-038 について1 | 50.8 | 38.1 | 14.52 | 46.25 | 49.28 | 6.35 | 3.5 | NBR |
| KL43 050.8-038.1/1 | 50.8 | 38.1 | 14.52 | 46 | 49.28 | 9.52 | 3.5 | NBR |
| KL43 057.15-044 について45 | 57.15 | 44.45 | 14.52 | 52.35 | 55.63 | 9.52 | 3.5 | NBR |
| KL43 063.5-0508 | 63.5 | 50.8 | 14.52 | 58.95 | 61.98 | 6.35 | 3.5 | NBR |
| KL43 063.5-050.8/1 | 63.5 | 50.8 | 14.52 | 58.7 | 61.98 | 9.52 | 3.5 | NBR |
| KL43 069.85-057 について15 | 69.75 | 57.15 | 14.52 | 65 | 68.33 | 9.52 | 3.5 | NBR |
| KL43 076.1-0635 | 76.2 | 63.5 | 14.52 | 70.46 | 74.68 | 6.35 | 3.5 | NBR |
| KL43 076.1-063.5/1 | 76.2 | 63.5 | 14.52 | 71.35 | 74.68 | 9.52 | 3.5 | NBR |
| KL43 082.55-06985 | 82.55 | 69.85 | 14.52 | 77.7 | 81.03 | 9.52 | 3.5 | NBR |
| KL43 088.9-0762 | 88.9 | 76.2 | 14.52 | 83.16 | 87.38 | 6.35 | 3.5 | NBR |
| KL43 088.9-076.2/1 | 88.9 | 76.2 | 14.52 | 84.05 | 87.38 | 9.52 | 3.5 | NBR |
| KL43 095.25-08255 | 95.25 | 82.55 | 14.52 | 88.67 | 93.22 | 12.7 | 3.5 | NBR |
| KL43 101.6-08255 | 101.6 | 82.55 | 19.43 | 95.83 | 99.57 | 6.35 | 5 | NBR |
| KL43 101.6-082.55/1 | 101.6 | 82.55 | 19.43 | 95.07 | 99.57 | 12.7 | 5 | NBR |
| KL43 107.95-088 について9 | 107.95 | 88.9 | 19.43 | 101.42 | 105.92 | 12.7 | 5 | NBR |
| KL43 114.3-09525 | 114.3 | 95.25 | 19.43 | 107.72 | 112.27 | 12.7 | 5 | NBR |
| KL43 120.65-101 について6 | 120.65 | 101.6 | 19.43 | 114.07 | 118.68 | 12.7 | 5 | NBR |
| KL43127-107 について95 | 127 | 107.95 | 19.43 | 120.42 | 124.97 | 12.7 | 5 | NBR |
| KL43 139.7-12065 | 139.7 | 120.65 | 19.43 | 133.12 | 137.67 | 12.7 | 5 | NBR |
| KL43 152.4-13335 | 152.4 | 133.35 | 19.43 | 145.82 | 150.37 | 12.7 | 5 | NBR |
| KL43 177.8-158 について75 | 177.8 | 158.75 | 19.43 | 171.22 | 175.77 | 12.7 | 5 | NBR |
| KL43 203.2-184 について15 | 203.2 | 184.15 | 19.43 | 196.62 | 201.17 | 12.7 | 5 | NBR |
私達にあなたの照会を直接送りなさい
